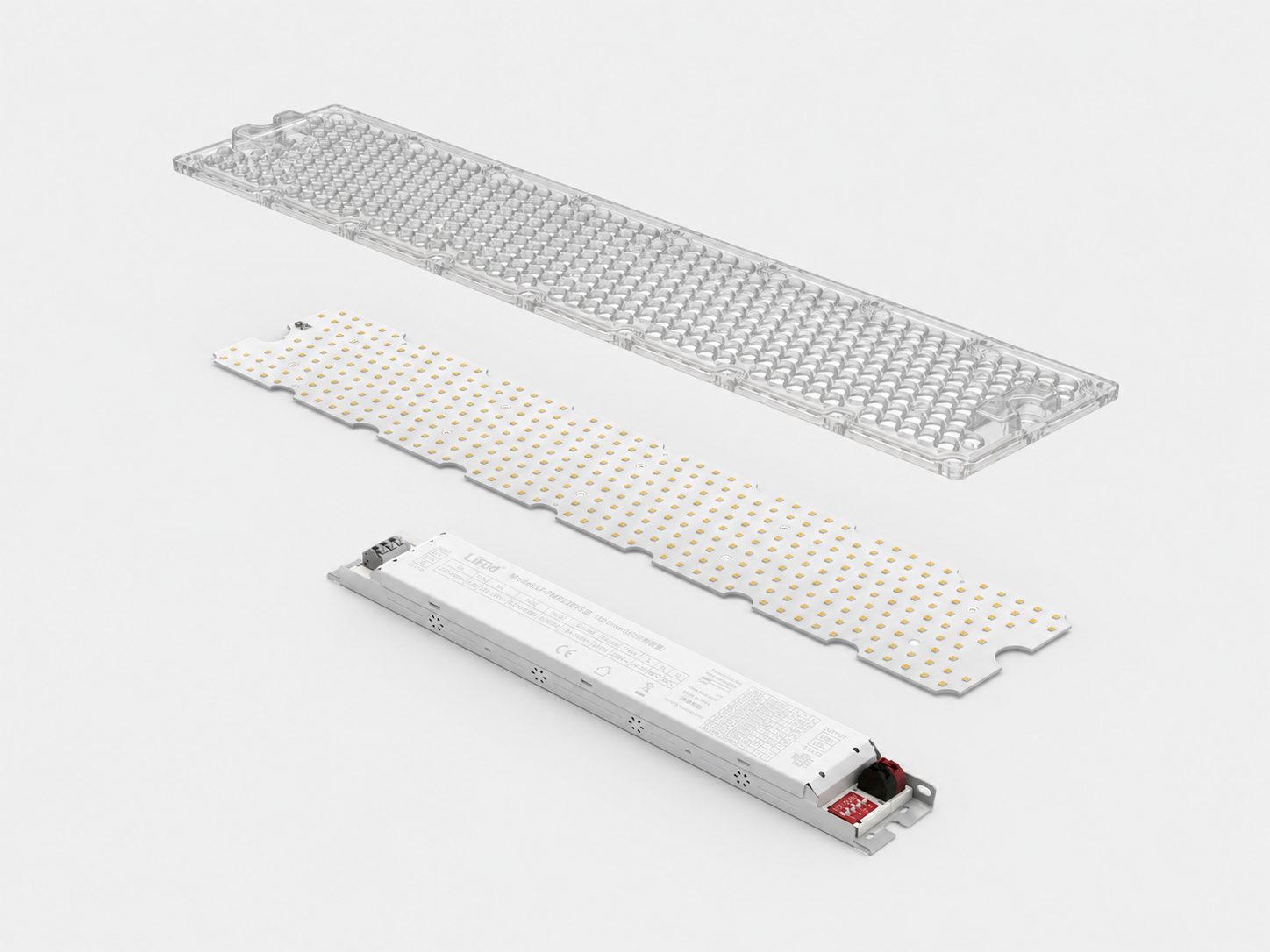

384 LEDs linear module for high-bay | R4F25
- PCB dimension: 503x97mm
- Up to 20000 lm
- Up to 195 lm/W
- CRI 80 (others available on request)
- Max Electrical Insulation 250Vdc
- Connection type: 2 x poke-in connectors + emergency option
- Lifetime >60000h @ 350mA Tp 65°C
- Available optics: 18°, 30°, 40°, 60°, 90°, 30°x60°
- Suitable power supply: Lifud FMR series
- On-board emergency light option available
Additional information
Additional information
| Series | High-Bay |
|---|---|
| Lens type | Linear |
| Power supply type | |
| LED type | 2835, CSP 2323 |
| Length (mm) | |
| Width (mm) |
